Taurus Adjustable Plastic Pedestal focus on rearch & development and marketing adjustable plastic pedestal, pedestal for tile, floor pedestal, pedestal for decking and other multipurpose pedestal overhead system. We are committed to providing professional multipurpose pedestal overhead products, solution consulations and technical support services for garden landscape, mirror waterscape, roof garden, square, fountain, interior decoration, balcony decoration, prefabricated house and other projects.
We accept OEM / ODM services.

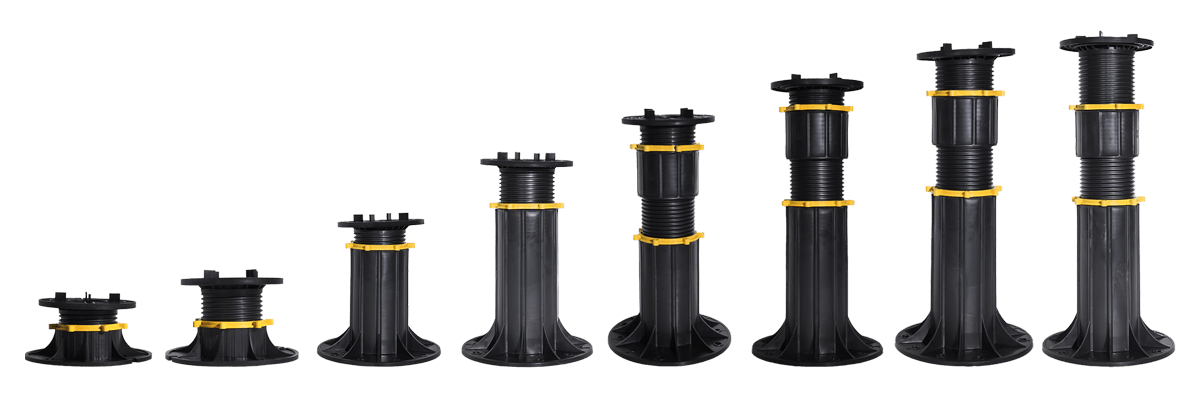

Pedestal Technicals
TA-VA0-01
[65-85mm]TA-VA0-03
[90-110mm]TA-VA0-04
[120-170mm]TA-VA0-06
[130-210mm]TA-VA0-N05
[190-275mm]TA-VA0-N06
[240-325mm]TA-VA1-N03
[265-430mm]TA-VA1-N04
[315-480mm]TA-VA1-N05
[300-470mm]TA-VA1-N06
[350-520mm]Pedestal Components
Joist Cradle
The Joist Cradle mainly used for the connection and fixation of wooden floor joists and aluminum alloy joists. The optional sizes are 30-80mm (general keel slot), 40mm, 60mm, 50-70mm, 60-80mm.
Spacer Tabs
The spacers mainly used to leave seams on the stone to allow quick drainage on the stone surface. Available sizes are 2mm, 3mm, 4mm, 5mm, 8mm, 10mm.
Shim
The shim is made of rubber, thickness 1.5mm, diameter 140mm. Its main function is to increase the friction between the stone and the supporter, adjust the uneven thickness of the stone, and reduce the noise of the floor after installation.
Rubber Pad
The Anti-pad is made of rubber, thickness 4.2mm, diameter 210mm. Placed on the bottom of the supporter, its function is to prevent sliding, reduce vibration and noise.
Slope Corrector
The slope is suitable for a base diameter of 200mm, and the slope can be adjusted from 0% to 5% by turning the slope plate.
Vertical Closure Clips
This accessory is made of stainless steel clips and is placed at the top and bottom of the support column. It effectively prevents sliding on the plane caused by natural wind or human factors.
Stainless Steel Perimeter Spacer
A wall spacer that absorbs shock. Constructed completely from stainless steel, the Stainless Steel Perimeter Spacer is engineered to create space between a raised floor and the walls of a building.
Adjustment Key
The material of this tool is made of iron , It is used for adjusting the height of TA-V self leveling pedestal.
Metal tile spacers
Spacer tabs thickness: 4mm
How to Calculate Pedestals for Paving & Decking Systems?
Follow our Online Pedestal Calculator to calculate the number of pedestals needed for your decking project. From surface area measurements to spacing recommendations, ensure a flawless and efficient installation.
