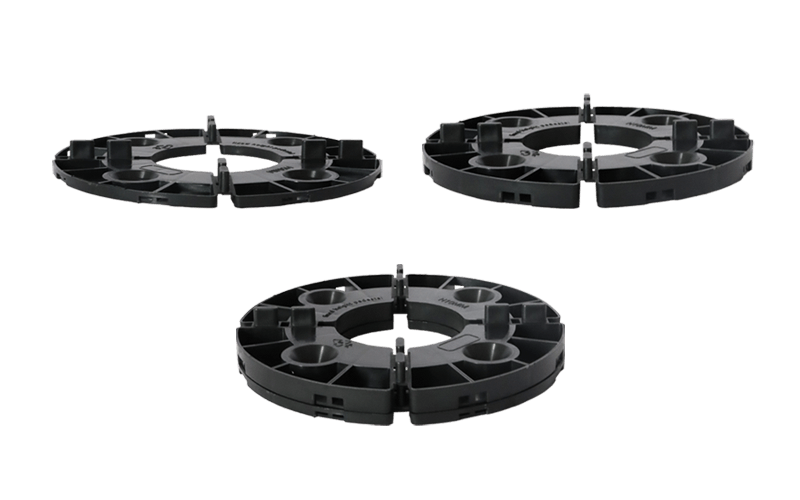

TA-FH Series: Fixed Height Pedestal

Taurus Fixed Height Pedestal is the most basic and straightforward entry-level support in the product series. It is designed for areas with very low requirements for elevated heights.It can be used for both paving and wooden floor installation, while also ensuring uniform and aesthetically pleasing gaps on the ground.Using a pedestal with a fixed height. No need for industrial adhesive, cement, sand, or other fixing materials at the bottom. Additionally, it requires low maintenance and is easy to upkeep

taurus fixed height pedestal

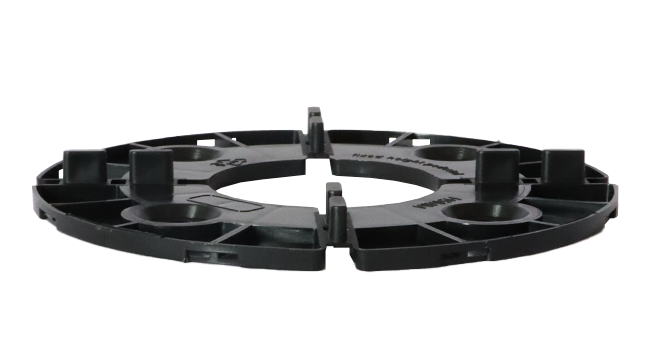

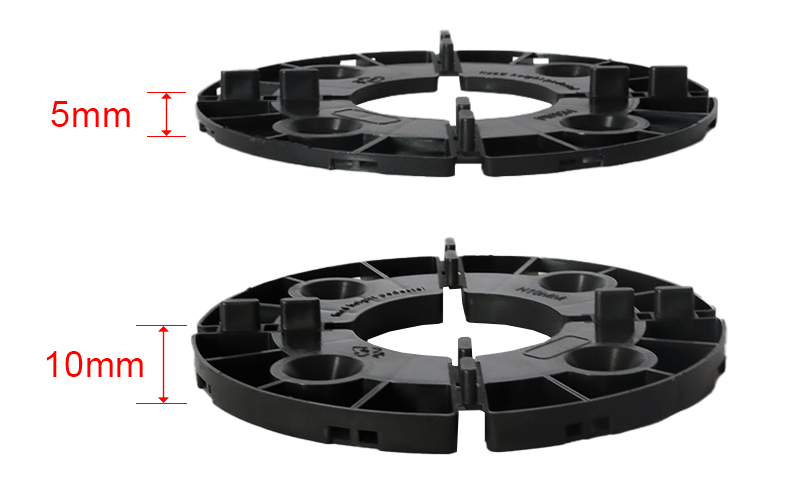

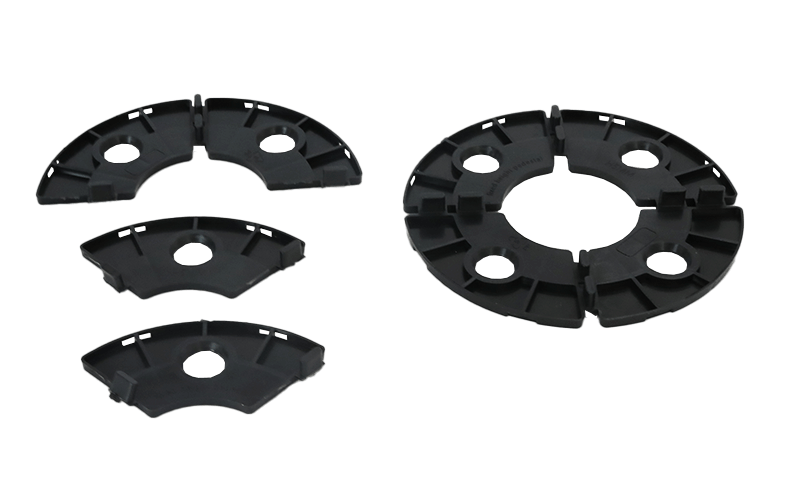

Model: TA-FH-N5

Height: 5mm

Diameter: 150mm

Bearing Weight: 3000KG

Material : PP（Polypropylene）

Temperature Range : -30℃ to 60℃

Suitable for : Indoor and outdoor installation of stone or wood flooring

taurus fixed height pedestal

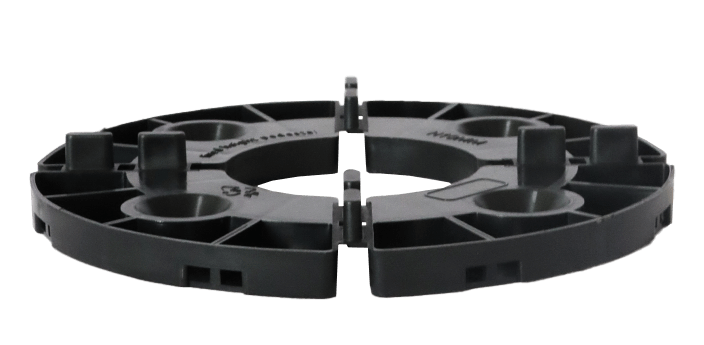

Model: TA-FH-N10

Height: 10mm

Diameter: 150mm

Bearing Weight: 3000KG

Material : PP（Polypropylene）

Temperature Range : -30℃ to 60℃

Suitable for : Indoor and outdoor installation of stone or wood flooring

taurus fixed height pedestaltaurus fixed height pedestaltaurus fixed height pedestal
taurus fixed height pedestal

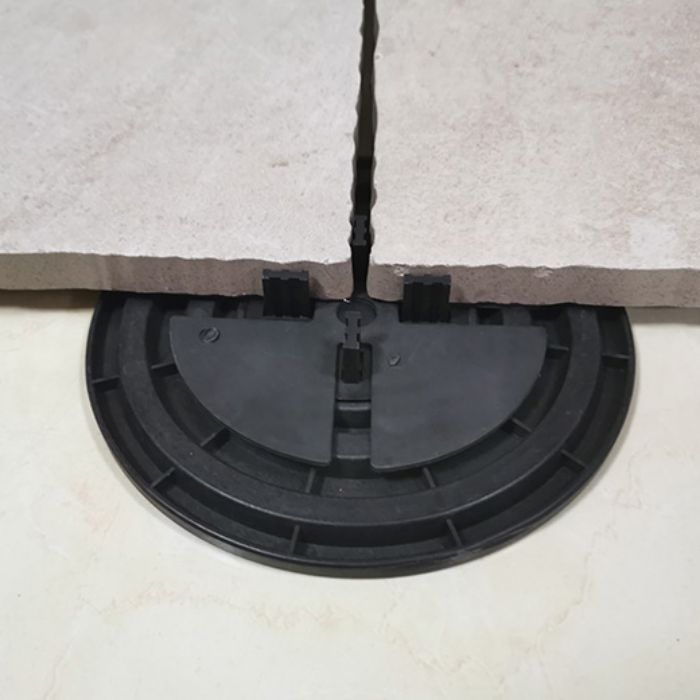

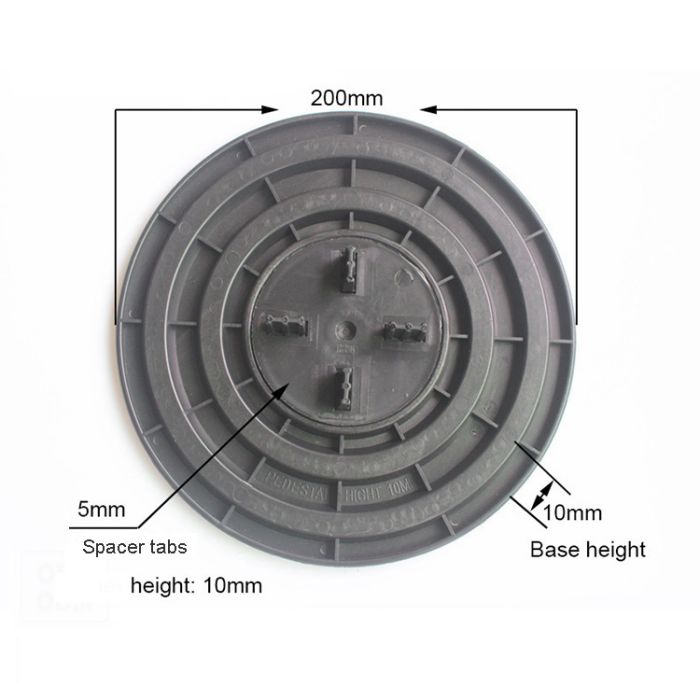

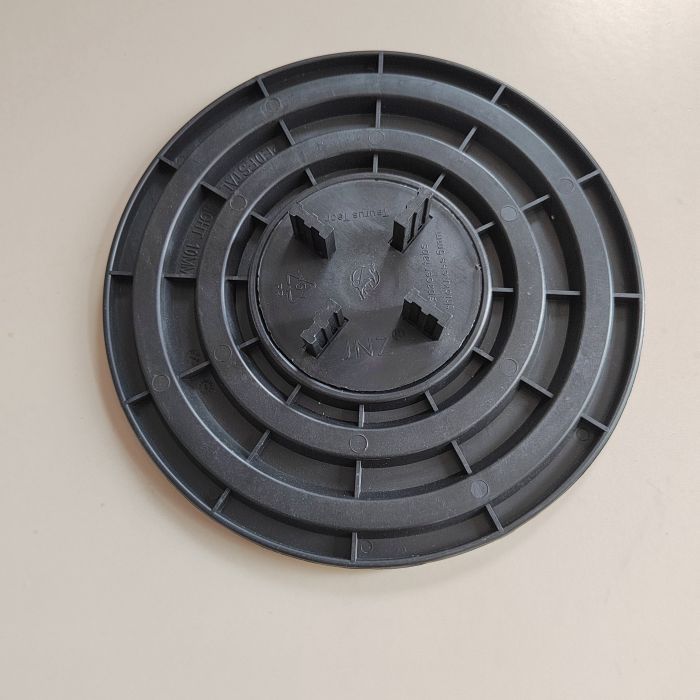

Model: TA-FH-10

Height: 10mm

Base Diameter: 200mm

Bearing Weight: 3000KG

Material: PP（Polypropylene）

Temperature Range : -30℃ to 60℃

Suitable for : Indoor and outdoor stone or wood floor installation

Compatible Accessories : Can be paired with shims/spacers, tabs, and joist cradles.

Detail: To elevate stone or wooden decks, simply place the appropriate spacers tab and shim, or joist cradle, on top of the pedestals. Our spacers tabs come in sizes of 2mm, 3mm, 4mm, 5mm, 8mm, and 10mm. Different thicknesses of tabs ensure consistent spacing between the stones. When it comes to supporting joists such as wood beams, aluminum joists, or steel joists, we offer joist cradles in various sizes within the range of 50-70mm, 40mm, 60mm-80mm, and 100mm. The raised platform allows for faster drainage and prevents moisture buildup on the flooring. Adding a rubber pad at the bottom of the pedestals provides excellent shock absorption and noise reduction.

taurus fixed height pedestaltaurus fixed height pedestaltaurus fixed height pedestaltaurus fixed height pedestaltaurus fixed height pedestal

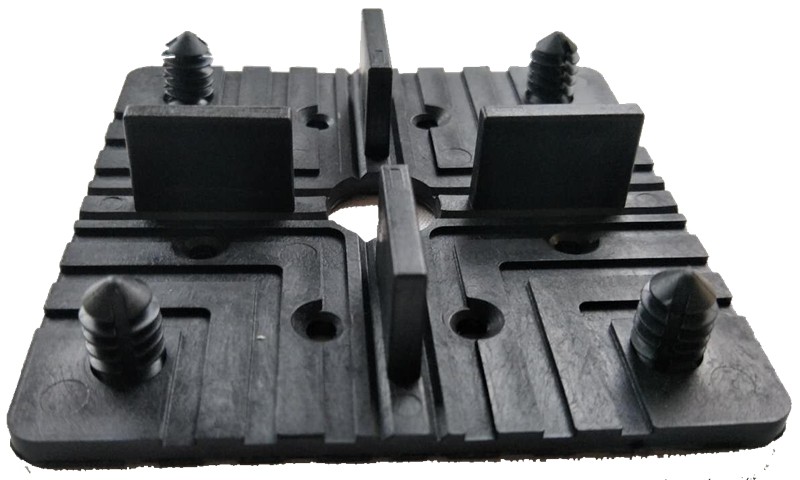

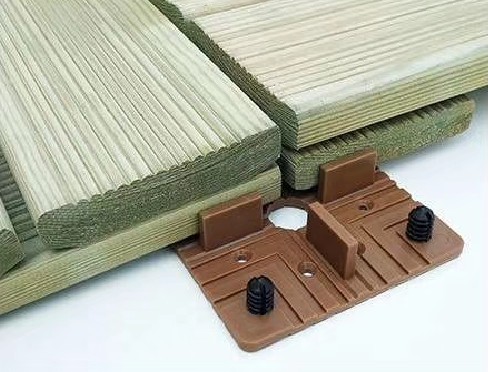

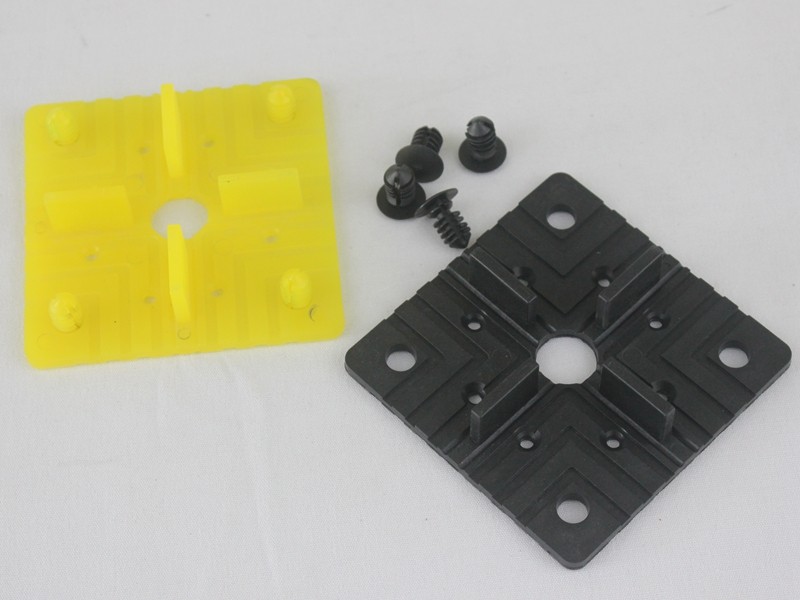

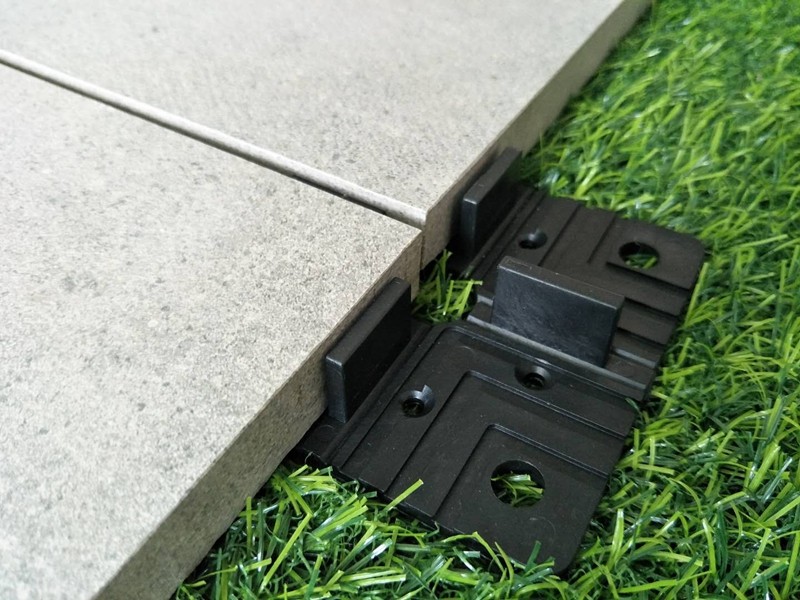

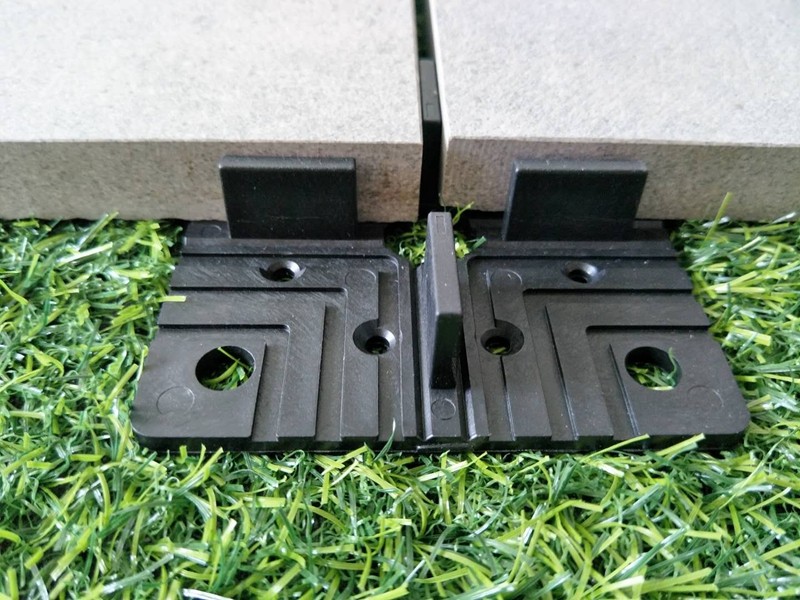

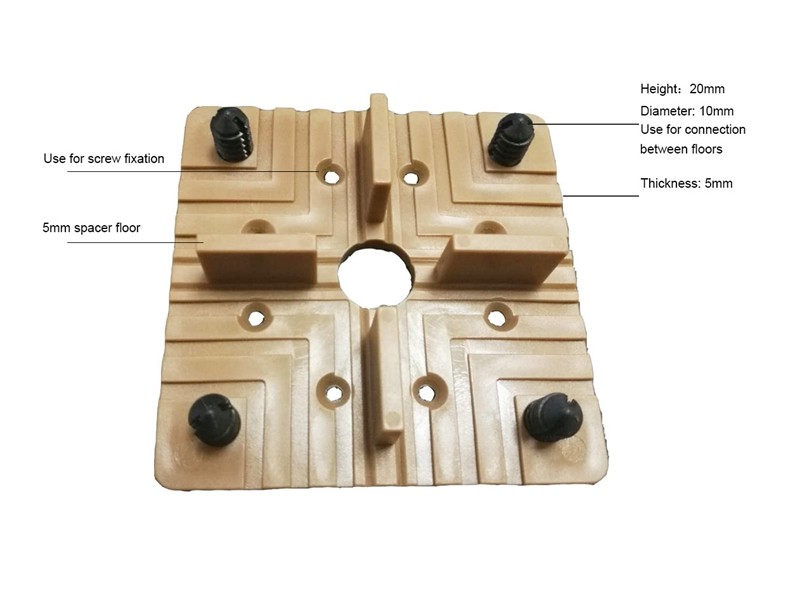

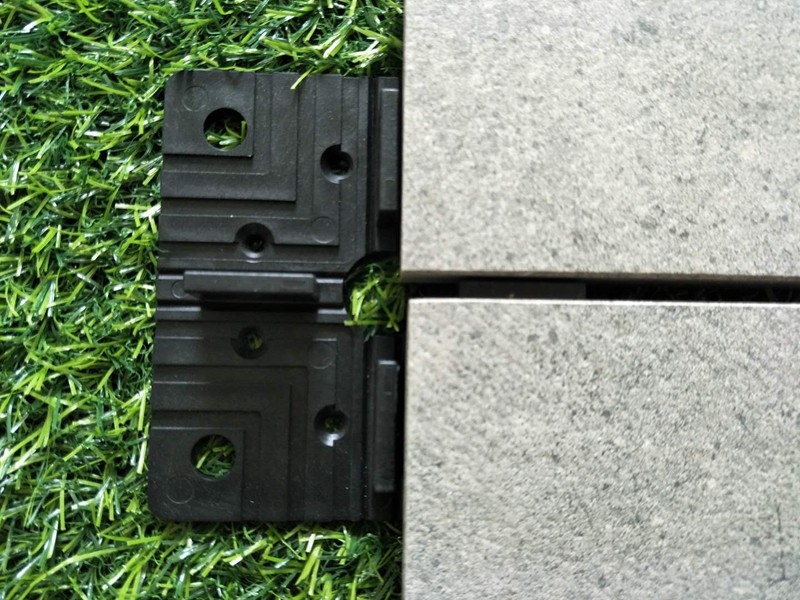

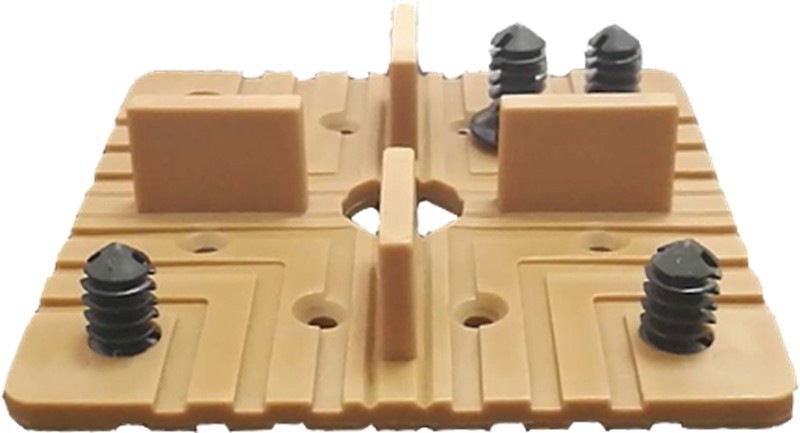

Product Series: TA-H 5mm Deck Tile Connector

Model: TA-FH-DTC

Height: 5mm

Size: 100mm * 100mm

Bearing Weight: 3000KG

Material : High Density Polypropylene

Temperature Range : -30℃ to 60℃

Suitable for : Indoor and outdoor installation of stone or wood flooring

Compatible Accessories : Plastic Screws with 20mm

Deck Tile Connector system benefits include :
·Comer pins secure tile placement.
·Elevates the deck tile from the wet subsurface to help prevent woodrot.
·Chemical &UV resistant polyethylene.
·Predilled countersunk holes for easy fastening into a concrete slab orexisting wooden deck.
·Preset gap spacing for an even looking surface.
·Can be divided into halves or quarters easily with hand tools using thepremolded score lines.
·Center drain hole provides improved drainage for water runoff toprevent pooling in the comers.
·Matte texture provides better appearance between gaps.

Product Videos

Product Components

taurus adjustable decking pedestal systems

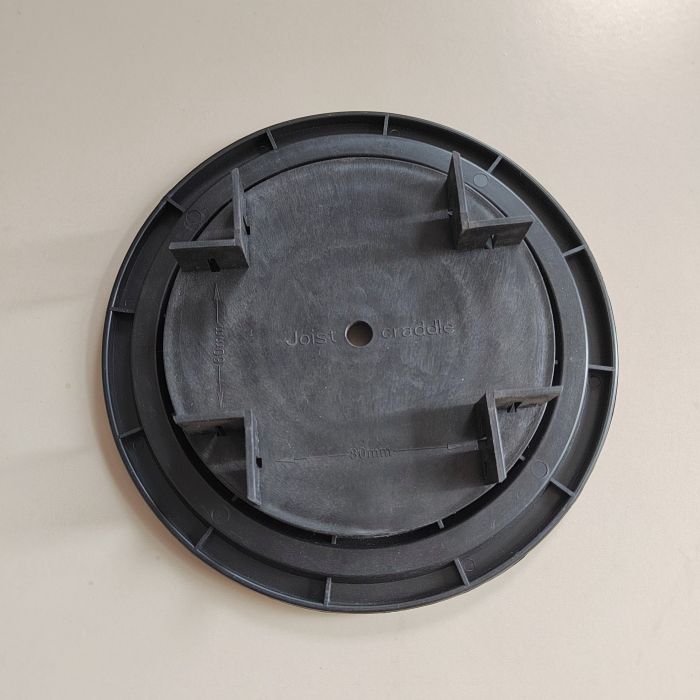

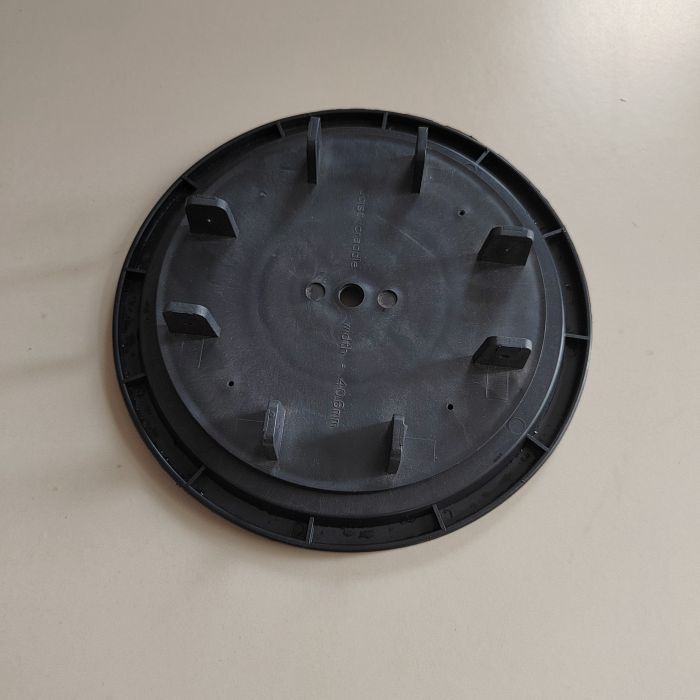

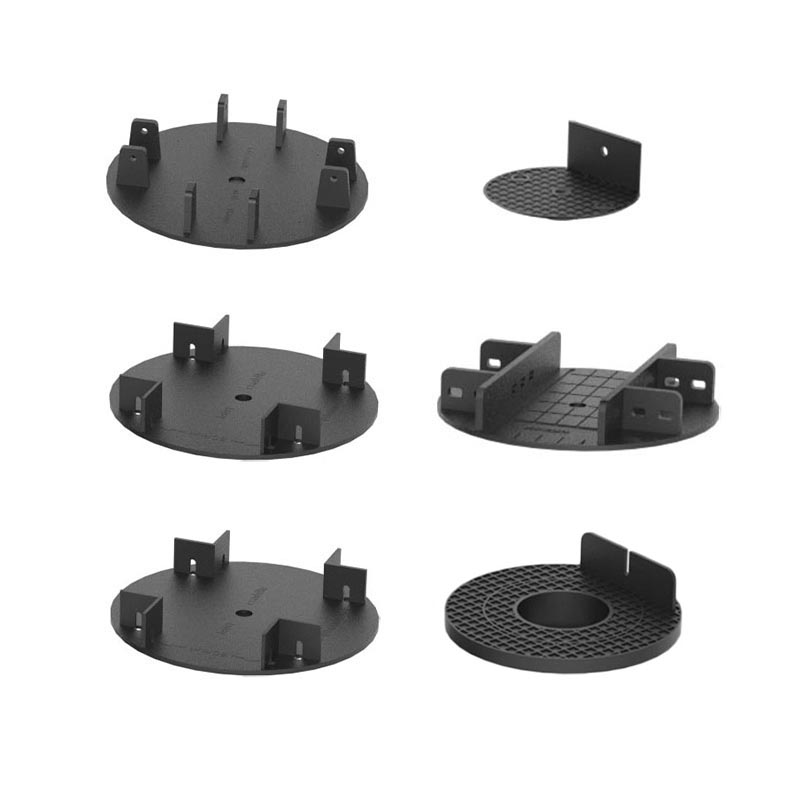

Joist Cradle
The Joist Cradle mainly used for the connection and fixation of wooden floor joists and aluminum alloy joists. The optional sizes are 30-80mm (general keel slot), 40mm, 60mm, 50-70mm, 60-80mm.
taurus adjustable paving pedestal systems

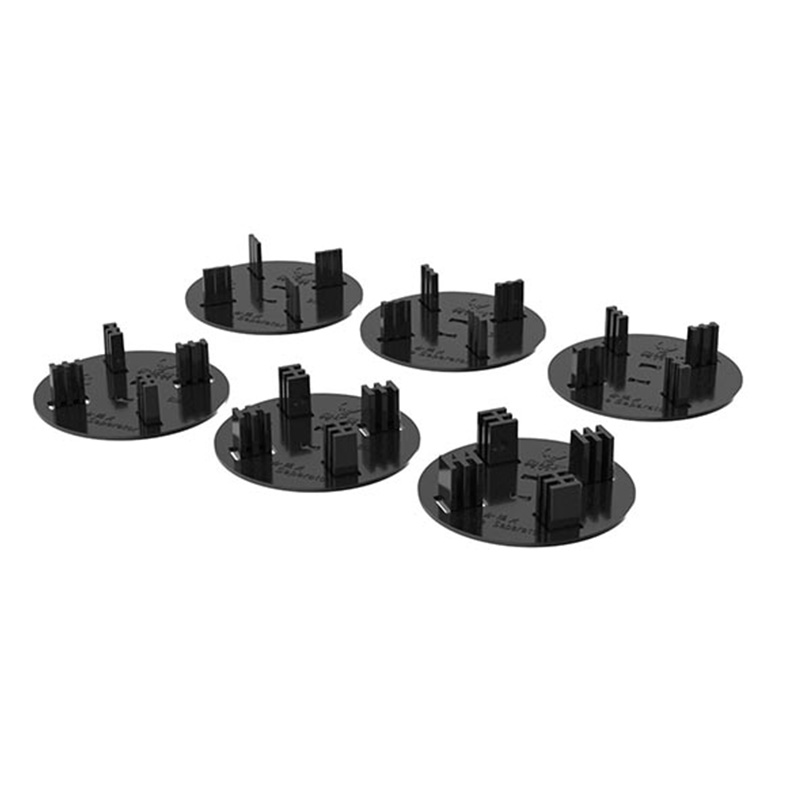

Spacer Tabs
The spacers mainly used to leave seams on the stone to allow quick drainage on the stone surface. Available sizes are 2mm, 3mm, 4mm, 5mm, 8mm, 10mm.
taurus adjustable paving pedestal systems

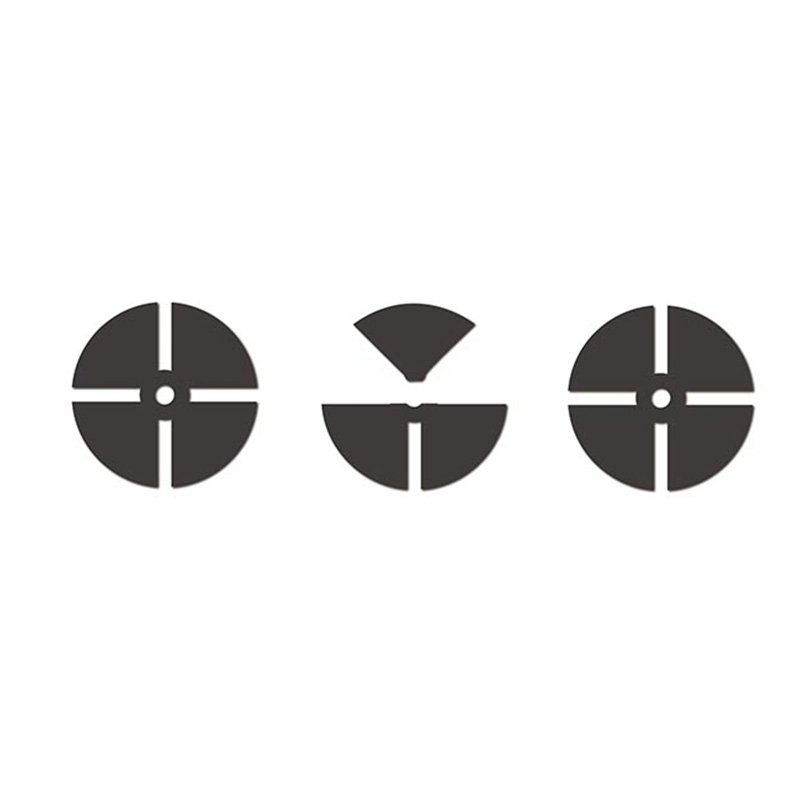

Shim
The shim is made of rubber, thickness 1.5mm, diameter 140mm. Its main function is to increase the friction between the stone and the supporter, adjust the uneven thickness of the stone, and reduce the noise of the floor after installation.
taurus adjustable paving pedestal systems

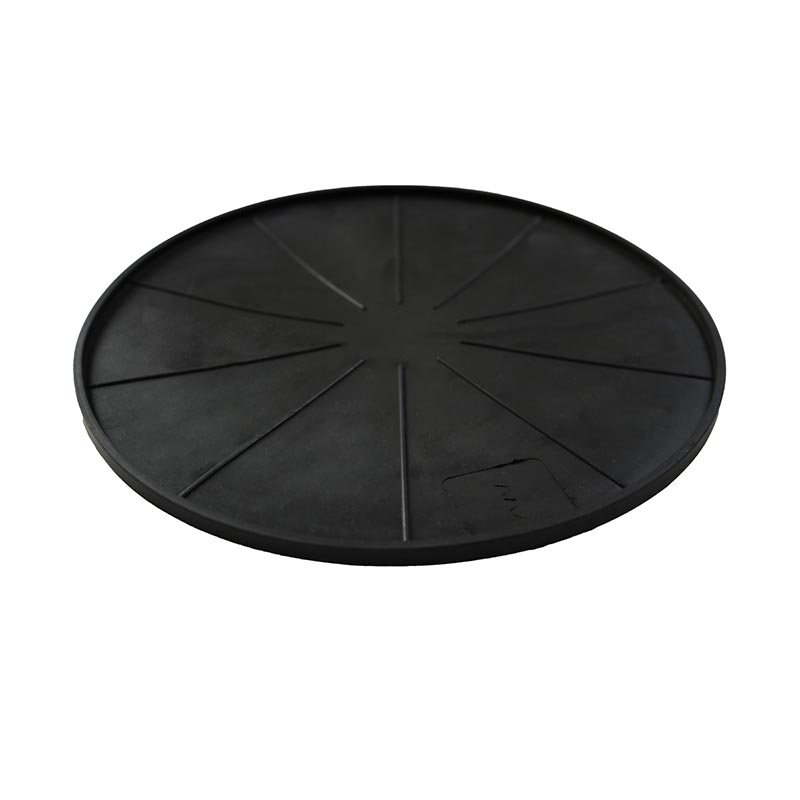

Rubber Pad
The Anti-pad is made of rubber, thickness 4.2mm, diameter 210mm. Placed on the bottom of the supporter, its function is to prevent sliding, reduce vibration and noise.
adjustable paving pedestal

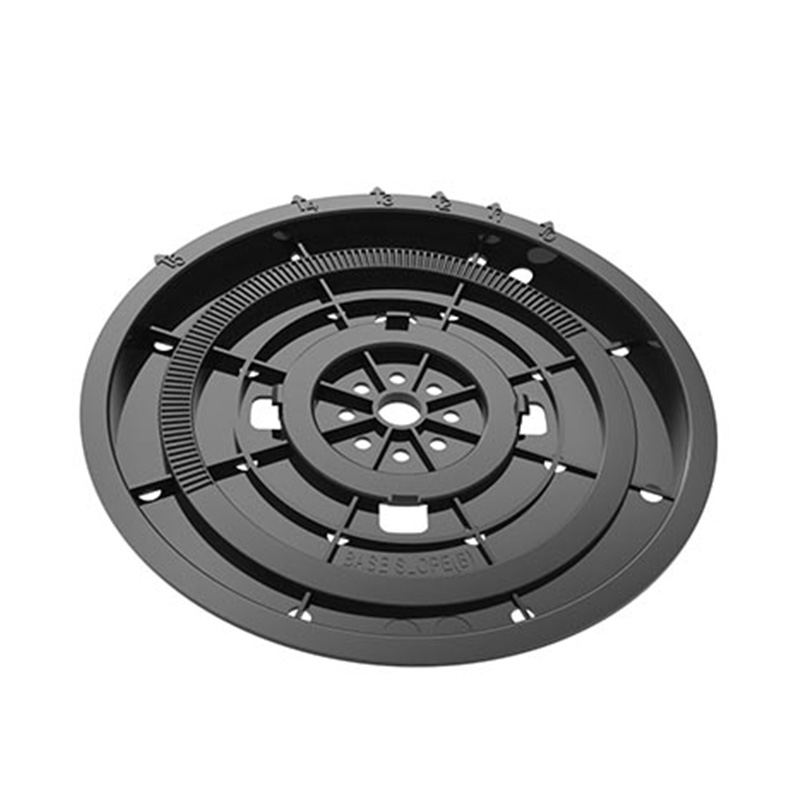

Slope Corrector
The slope is suitable for a base diameter of 200mm, and the slope can be adjusted from 0% to 5% by turning the slope plate.
taurus adjustable paving pedestal systems

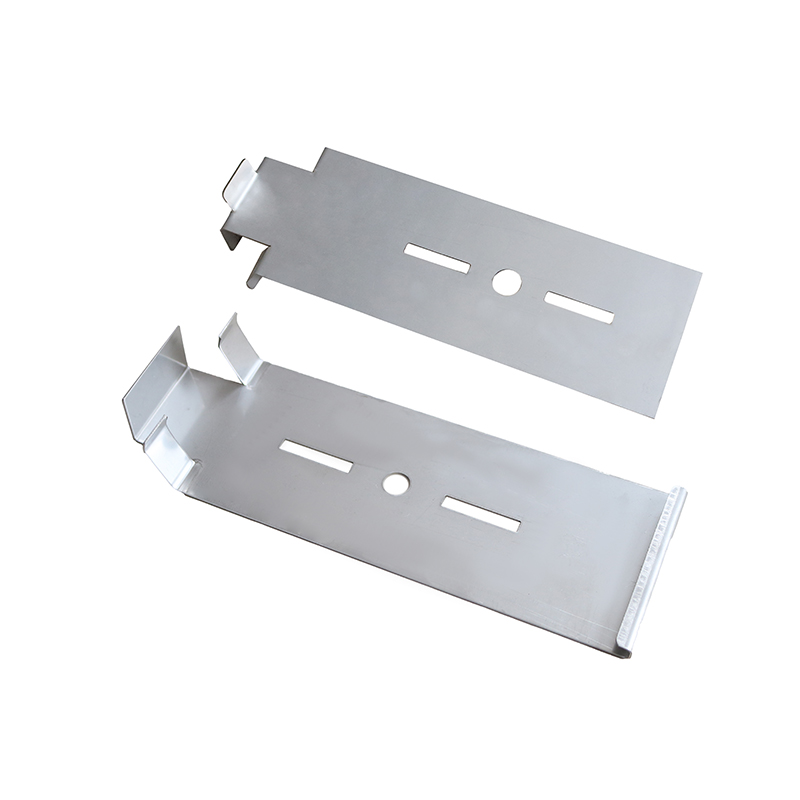

Vertical Closure Clips
This accessory is made of stainless steel clips and is placed at the top and bottom of the support column. It effectively prevents sliding on the plane caused by natural wind or human factors.
taurus adjustable paving pedestal systems

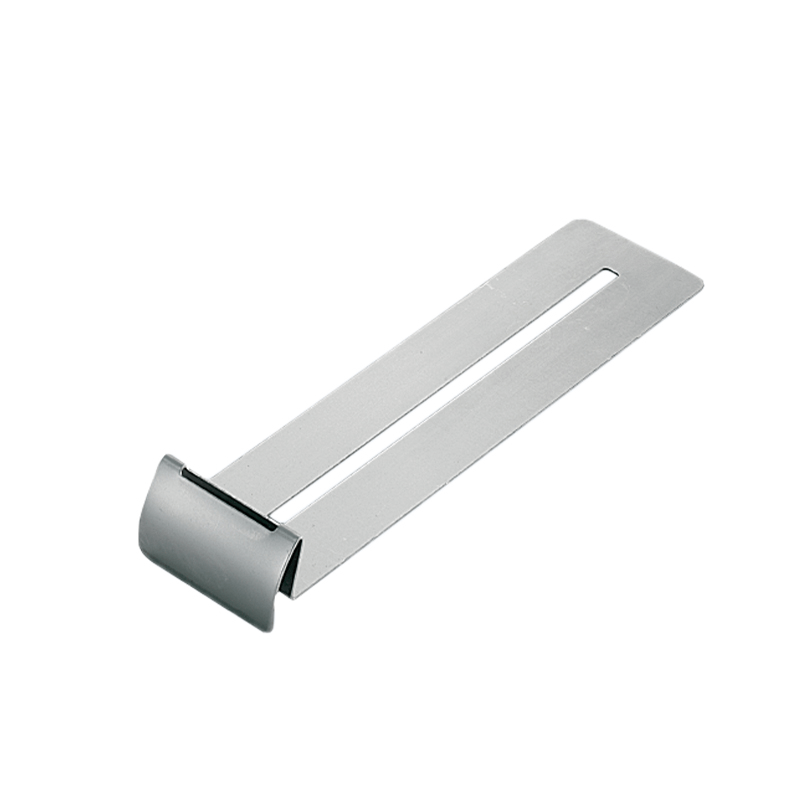

Stainless Steel Perimeter Spacer
A wall spacer that absorbs shock. Constructed completely from stainless steel, the Stainless Steel Perimeter Spacer is engineered to create space between a raised floor and the walls of a building.
taurus adjustable paving pedestal systems

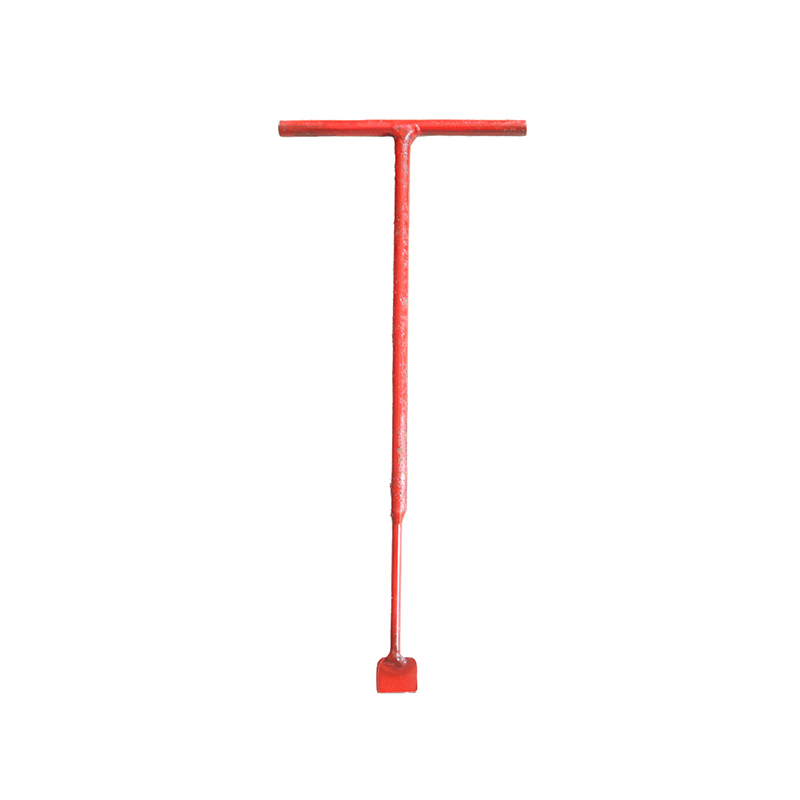

Adjustment Key
The material of this tool is made of iron , It is used for adjusting the height of TA-V self leveling pedestal.
taurus adjustable paving pedestal systems

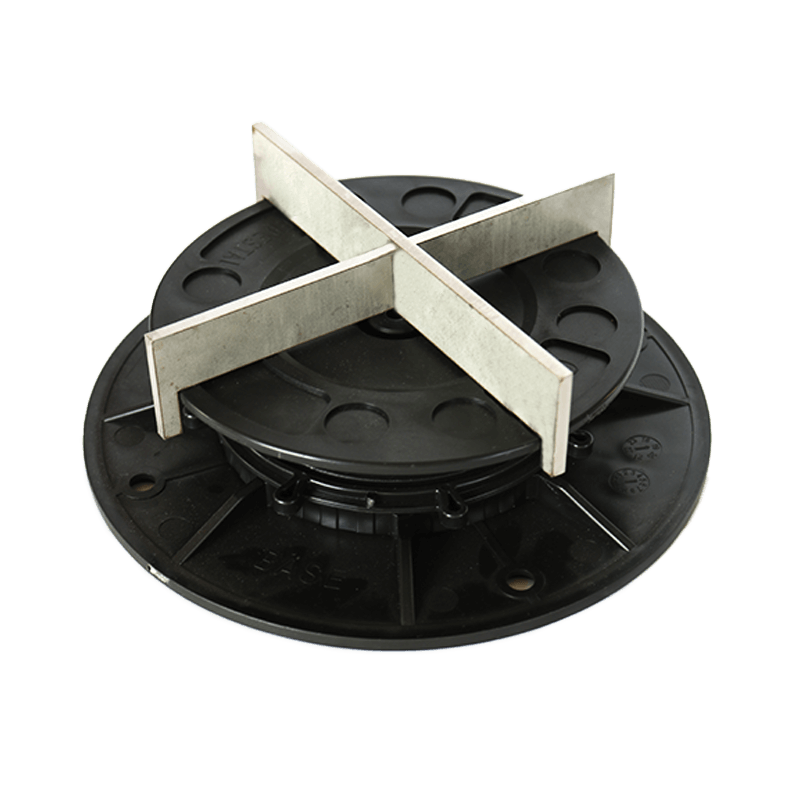

Metal tile spacers
Spacer tabs thickness: 4mm

Other Series Pedestal

TA-M Series

TA-M Series

TA-VM Series

TA-VM Series

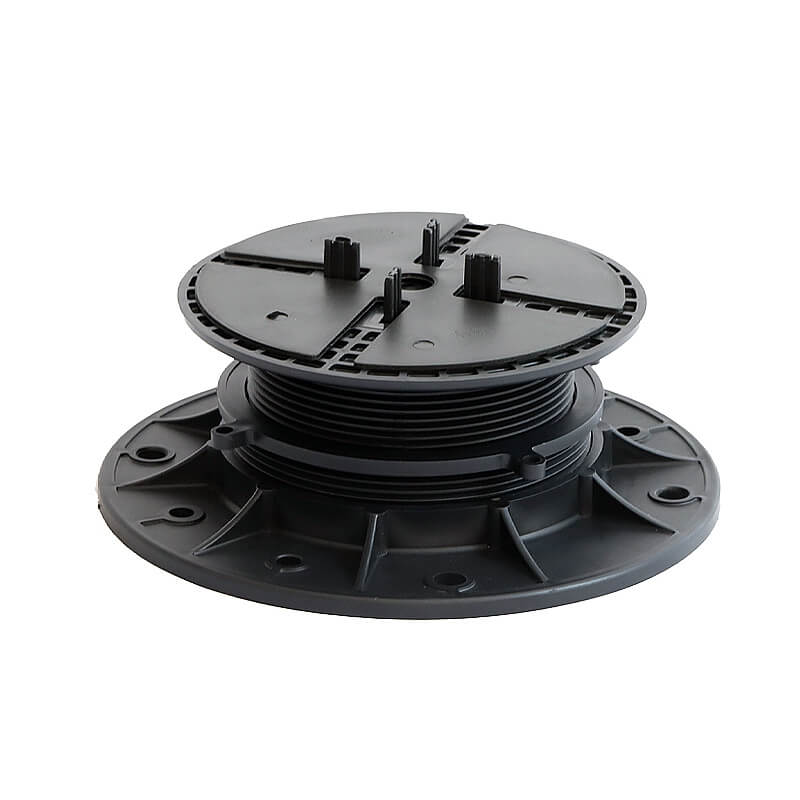

TA-U Series

TA-U Series

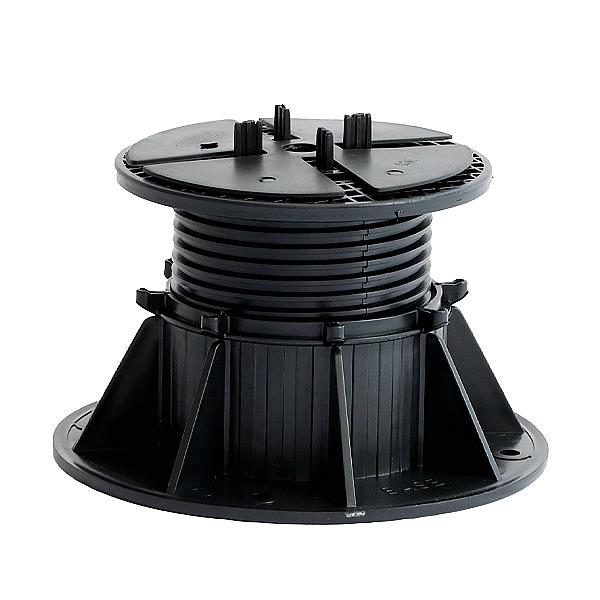

TA-R Series

TA-R Series

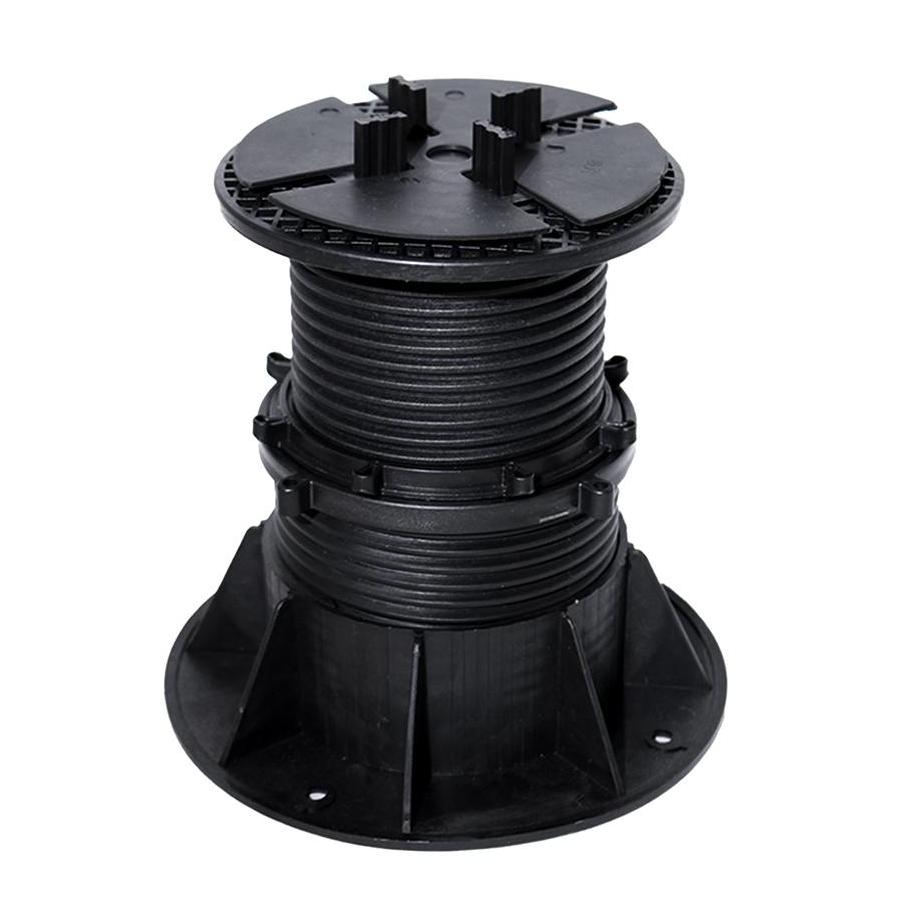

TA-NR Series

TA-NR Series

TA-VR Series

TA-VR Series

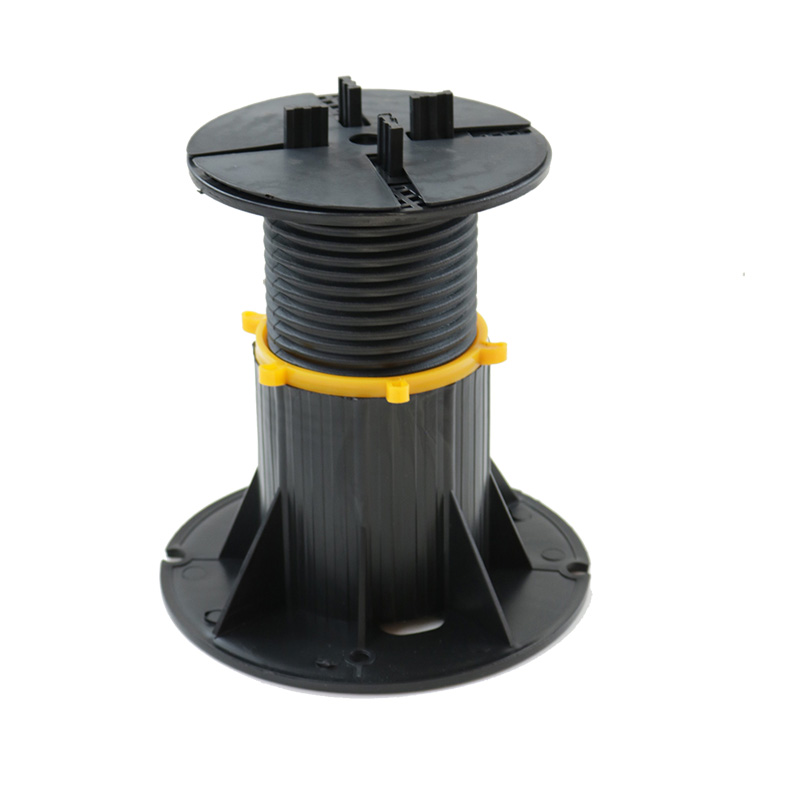

TA-A Series

TA-A Series

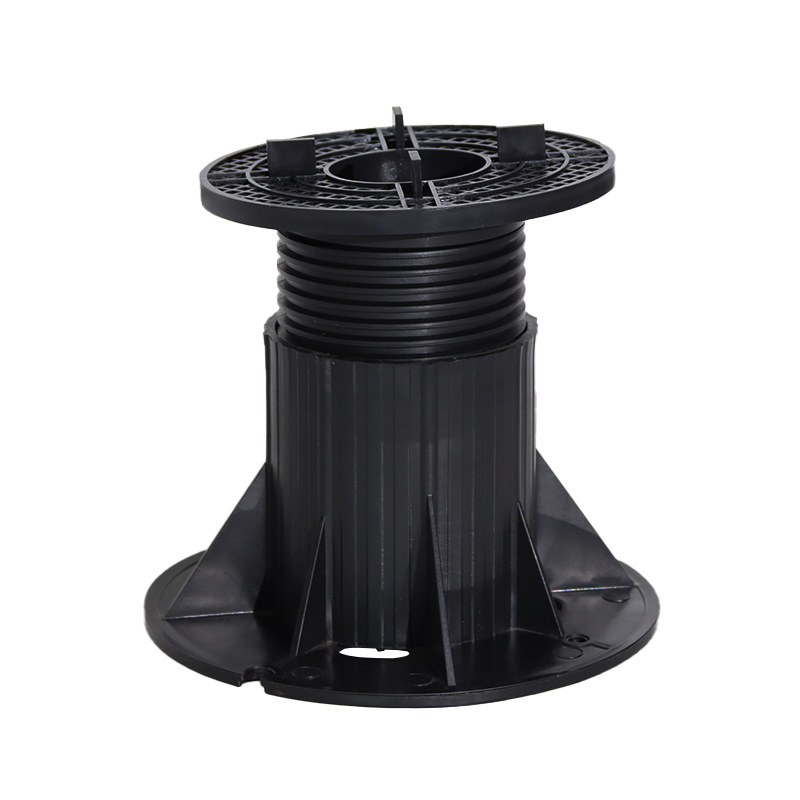

TA-VA Series

TA-VA Series

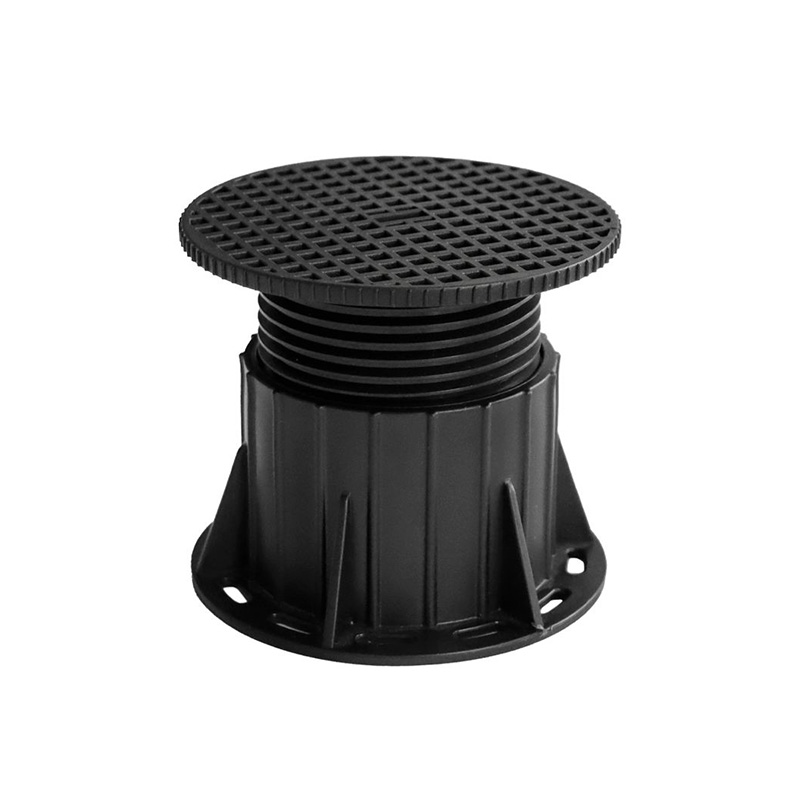

TA-S Series

TA-S Series

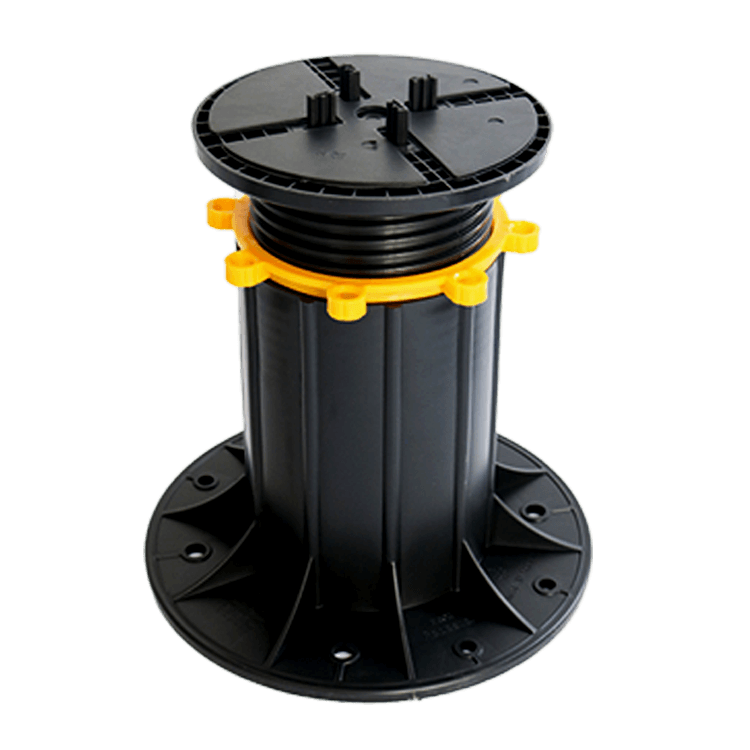

TA-T Series
