Brace Kit

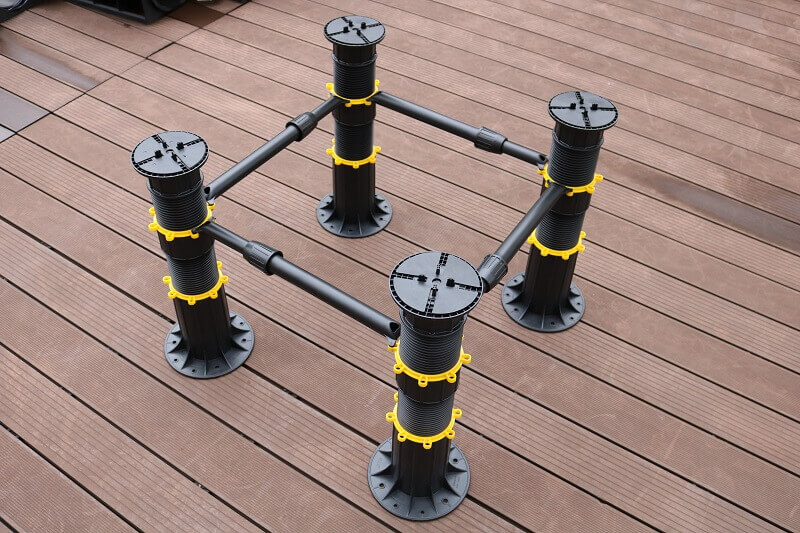

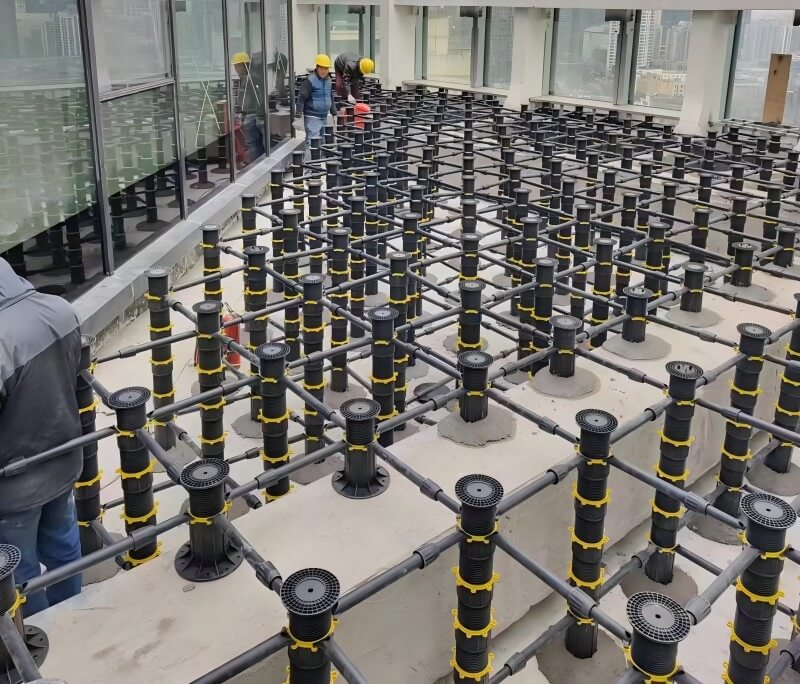

A brace kit is a device used to lock the distance between pedestals, providing added stability, especially when a raised height is required. These brace piece connect to the fixed collar on the pedestals, then are adjusted to the desired spacing and secured with fasteners. By linking all the pedestals together in this way, a sturdy framework is formed, serving as a foundation for laying materials such as stone, wooden planks, decks, etc.

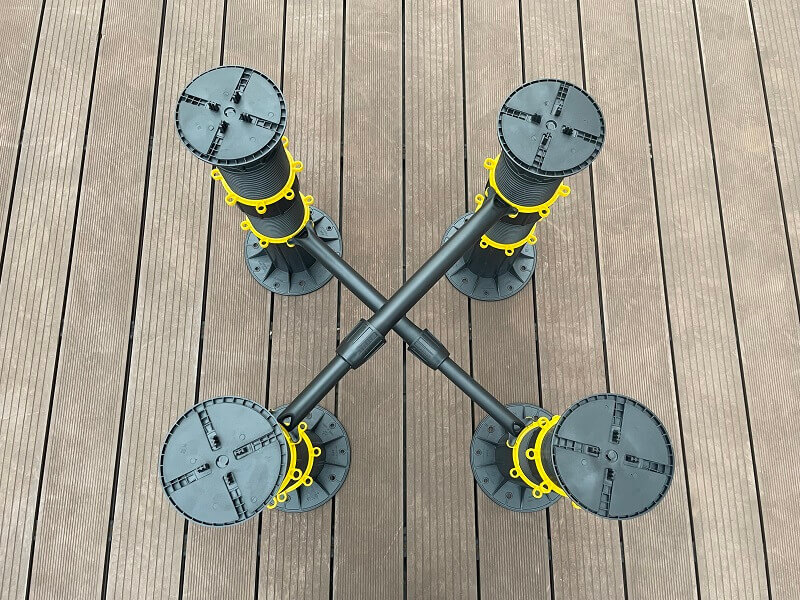

• The arrangement of these connections can be configured according to the specific situation, such as an 'X' arrangement.
• For supporting heights of 60cm or more, using a brace kit ensures a more robust connection.
• The connection spacing, which is calculated from the center of two pedestals, ranges from 50cm to 80cm.

DataSheet

• Material：Polypropylene(PP)
• Adjustment Range：50-80mm

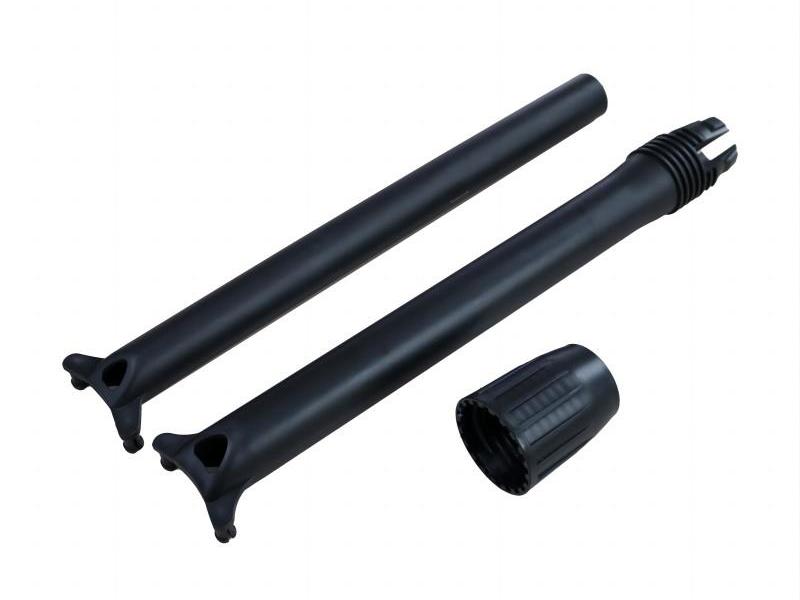

• Components：Two matching adjustment rods and a tightening rotary nut

Note

Only compatible with the TA-T adjustable pedestals
